Product Description

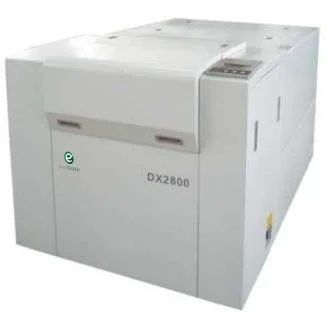

DX4800, DX2800 and DX1800 are high precision laser imagesetter after a long time of practical application, proved that this type of machine performance is reliable and stable, simple operation.
The full imagesetter includes CTF machine, online processor, driving computer and RIP 4.0 Software.
Machine features:
High precision
Complete and automatic, from computer to film stacker
Semiconducter lasers, being durable
Stable service of spare parts and after-sale
Ecoo Laser Imagesetter is the ideal choice for large plate making center, newspaper printing, can printing and ceramic industry.
Product Parameters
| Laser Imagesetter |
| Model | DX1800 | DX2800 | DX4800 | DX2000 |
| Film dimensions(mm) | 1320mm/ 1120mm/ 940mm × 914mm / 760mm / 660mm | 940mm/ 812mm × 660mm - 508mm | 635mm × 457mm | 2000mm × 1200mm (optional) | |
| Scanning resolution | 1500dpi---4000dpi (optional) | 600dpi---4000dpi (optional) | |
| Scanning mode | External drum, broad band laser scanning with high speed | |
| Repeatability Precision | ± 0.01mm | ± 0.02mm | |
| Operation mode | Full automatic, 60m roll films with film processor, without dark room | Half automatic, single piece of film loading, with dark room | |
| External dimensions | 2710mm×1600mm×1160mm | 2580mm×1360mm×1180mm | 2390mm×1060mm×1050mm | 2050mm×1040mm×1240mm | |
Applied film
This imagesetter could work well with all below types of film:
Thickness: 0.1mm
Emulsion: outside
Inner diameter: 72mm
Spec: HeNe red laser sensitive, hard flange
FAQ:
1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP/CTF machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Two years
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
